    0.0005mm Optical Quartz Glass Hemispherical Resonator for Hemispherical Resonator Gyroscope

    Ask Lasest Price
    Brand Name : ZKTD
    Model Number : ZKTD-R011
    Certification : ISO
    Price : CN¥10,869.60
    Payment Terms : L/C,, T/T
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    0.0005mm Optical Quartz Glass Hemispherical Resonator for Hemispherical Resonator Gyroscope

    Product descriptions from the supplier

    Product Description

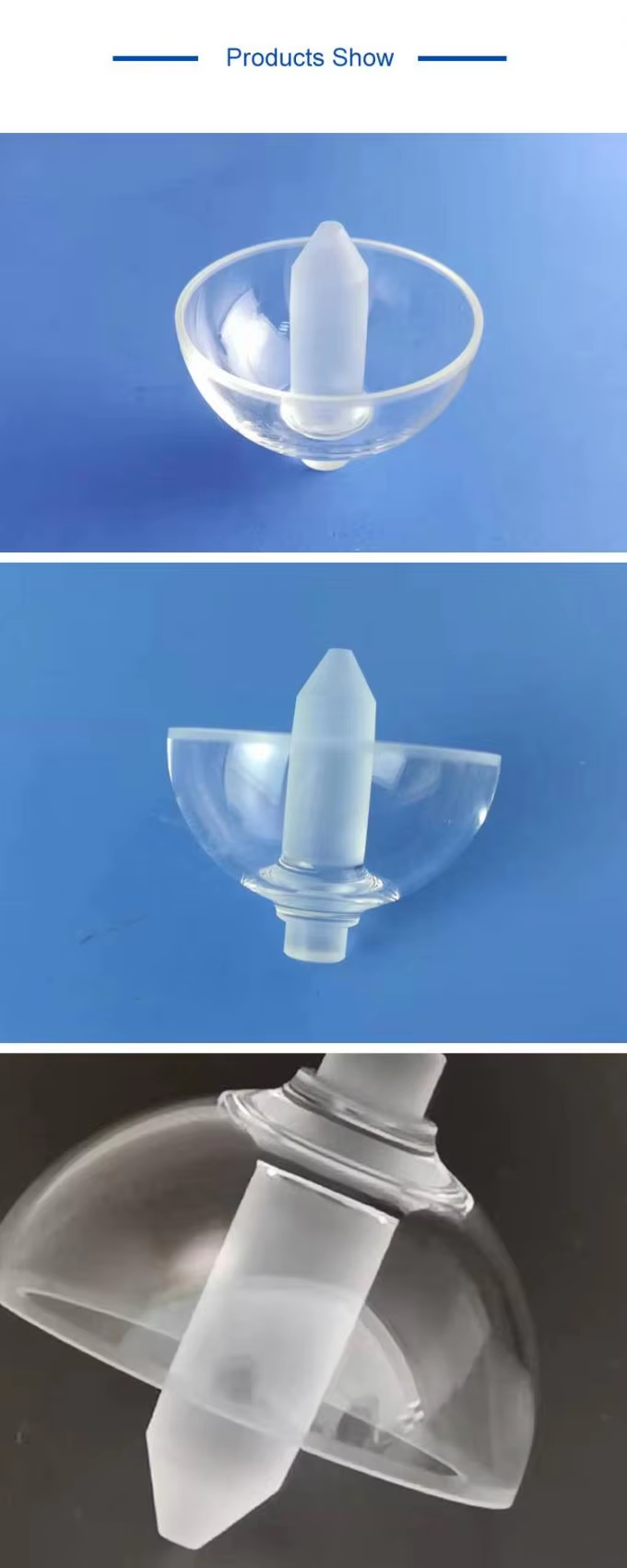

    Quartz Hemispherical Resonator For Hemispherical Resonator Gyroscope

    The hemispherical resonator gyroscope is composed of hemispherical resonator, excitation cover and sensitive basement.

    All of them are made of fused quartz material with high quality factor and metallized on the surface. As the sensitive part of

    the gyro, the hemispherical resonator is the core of the hemispherical resonator gyro. Its machining surface accuracy, position

    accuracy and surface quality are the most key factors affecting the accuracy and performance of the hemispherical resonator

    gyro. The higher the machining accuracy of hemispherical resonator, the closer it is to the ideal resonator state, and the higher

    the gyro accuracy. The hemispherical resonator is made of fused quartz and is a hemispherical thin-walled shell with a central

    support rod, with a diameter of φ 15 ~ 60mm, wall thickness is generally 0.3-1.1mm, surface accuracy < 0.5um, inner and outer

    ball concentricity < 0.5um, surface roughness Ra < 0.025um, and quality factor Q value is higher than 107. The special-shaped

    spherical hemispherical resonator requires high surface accuracy and concentricity of inner and outer spheres, and the accuracy

    reaches sub micron level. Due to the hard and brittle quartz glass material, easy edge collapse, crack and embrittlement in

    processing, and special processing technology, the conventional processing method of spherical optical elements is not applicable,

    the qualified rate is very low, and the processing is very difficult.


    After years of technical accumulation, we can successfully produce this part with high accuracy.

    0.0005mm Optical Quartz Glass Hemispherical Resonator for Hemispherical Resonator Gyroscope

    Specification
    item
    value
    Place of Origin
    China
    Beijing
    Brand Name
    ZKTD
    Model Number
    ZKTD-R011
    Application
    hemispherical resonator gyroscope
    Shape
    Round
    Dimensions
    ZKTD-R011
    Chemical Composition
    99.999% fused silica
    Product Name
    Hemispherical Resonator
    Material
    Highly Purity Synthetic Fused Silica
    Color
    Transparent
    MOQ
    5PCS
    Precision
    High grade
    Tolerance
    0.0005mm
    Size
    Customized
    Feature
    High precision

    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

    Company Profile
    Yantai Zk Optics Co., Ltd. is experienced in optical and quartz glass industry for more than 20 years, owns a large production base of 30,000 square meters in Laiyang. We are a high-tech comprehensive glass processing enterprise integrating R&D, production and sales.
