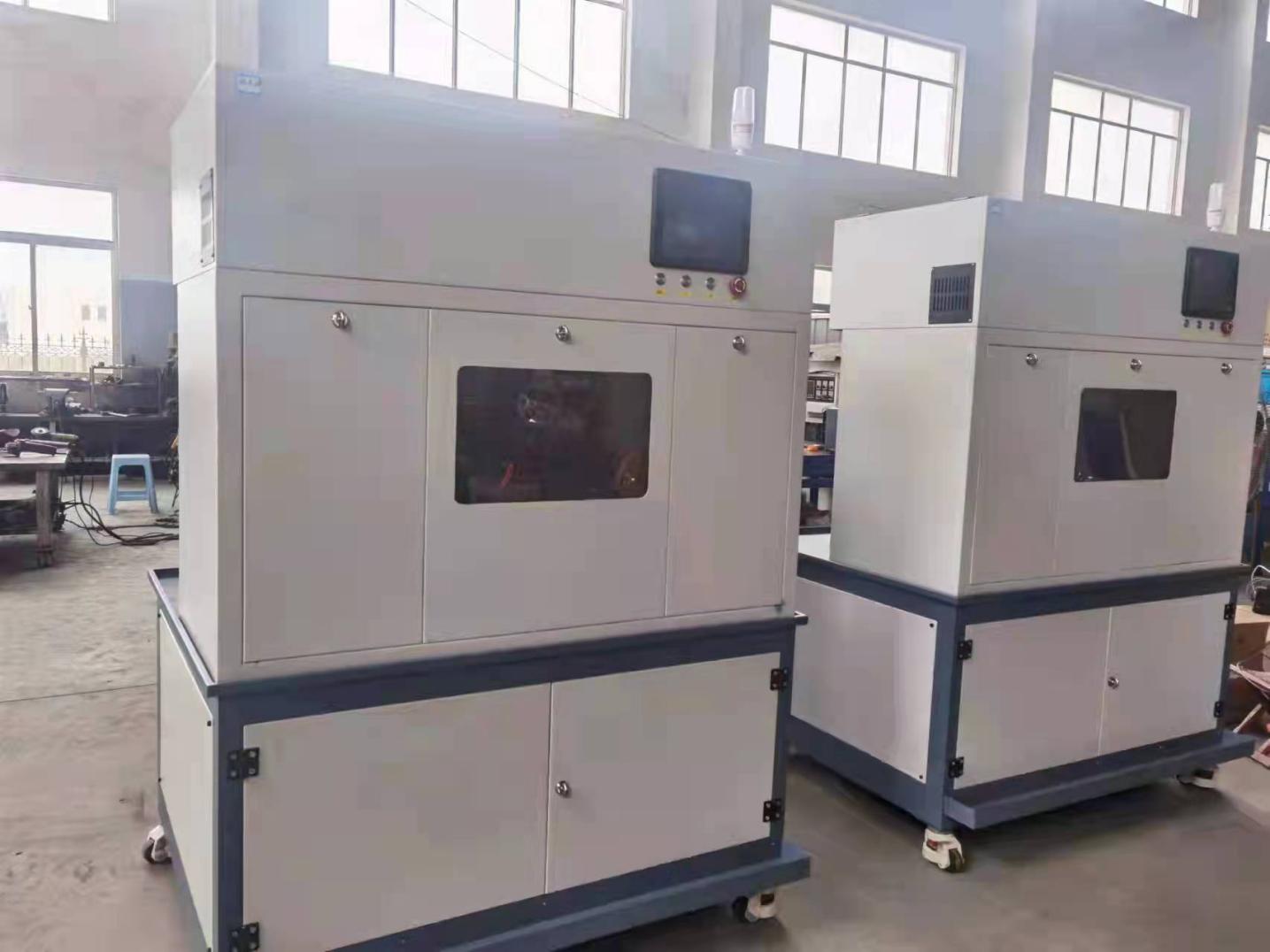

450mm Servo Muti-wire Cutting Machine

Overall Dimension of Equipment

Transverse (width) 13600mm, Longitudinal (length) 2160mm, 1960mm high.

Overall dimensions of refrigeration system

Transverse (width) 1000mm, Longitudinal (length) 1060mm, 730mm high.

Weight of Equipment

2 metric ton (Deviation due to different models)

Mechanical Technical Data

1; Table stroke 450mm (customizable)

2; The size of the material plate is 450x450 (this size is a conventional model, and other sizes can be customized in advance)

4; Verticality of lifting body 0.01mm

5; Independent nodular cast iron tripod (4-angle frame, 5-angle frame, U-shaped frame, different due to different machinery)

6; Roller diameter 135-170mm (double taper roller)

7; Roller length 450mm (customizable)

Other configurations:

See product’s Technical Specification

Yantai ZK Optics Co., Ltd., is founded in year 1998, it is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales.

The product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and India. It has established a high-quality product image and brand in the field of glass deep processing.

The company specializes in the custom processing of various optical glasses, including glass capillary tubes / rods, shaped glass tubes / rods, laser cavity filters, optical fiber quartz end caps, quartz parts, quartz plates and quartz instrument etc.

Products are widely used in semiconductor, communications, solar energy, electronics, optics, optical fiber, aerospace, military, chemical industry, coating, medical treatment and many other high-end industries.

The company is located in Beijing, the capital of China, and it has a large production base-Laiyang Zhong Cheng Quartz Glass Co., Ltd. In Laiyang, Shandong province which covers an area of 20,000 square meters. In year 2020, in order to expand the scale of production, the factory was expanded by 8,000 square meters, and it is expected to be put into use in year 2021.

The company takes product quality as its tenet. Each product is strictly controlled from material selection, processing, inspection, packaging, transportation to after-sales service. With technological innovation as the driving force, a large-scale and systematic production model has been formed.

Adhering to the service concept of the quality first and customer-oriented, through unremitting efforts and continuous improvement, ZCQ has created a good manufacturing platform of optical glass for customers.
