Product Description:

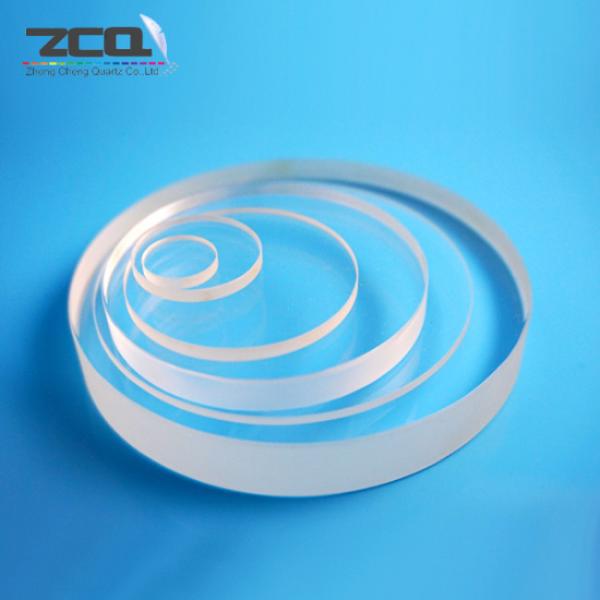

Quartz glass plate is a kind of high precision optical components
with different shapes and sizes customized according to clients'
requirements. It is made from high quality synthetic quartz
material with high transmittance and excellent mechanical and
thermal properties. It features excellent flatness, chamfer, bevel,
surface hardness and clear aperture, which are all ≤3λ, ≤0.2mm×45°,
≤0.2mm×45°, ≥650HV, ≥90% respectively. It can be widely used in
various industries, such as optical communication, aerospace, laser
technology, medical treatment, etc. With high precision and
excellent performance, quartz glass plate is the ideal choice for
various applications.
Features:
- Product Name: Quartz Glass Plate
- High temperature resistant
- Optical glass
- High purity quartz
- Surface Roughness: Ra≤0.2μm
- Edge: Smooth
- Size: Customized
- Clear Aperture: ≥90%
- Surface Quality: 80-50
Applications:
ZCQ Quartz Glass Plate, with model number ZCQ-P005 and place of
origin from China, offers excellent properties for a wide range of
applications. It features surface hardness up to 650HV, transparent
clear color, thickness ranging from 0.5mm to 30mm, clear aperture
up to 90%, and surface roughness of Ra≤0.2μm. What’s more, it is
also customizable in shape and size, and features excellent
transmittance, heat resistance and durability. Its wide range of
applications including optics, medical, lightening, laser,
semiconductor and electronic industry, making it the ideal material
for various applications.
Technical Parameters:
| Property | Value |
|---|
| Perpendicularity | ≤3' |
| Chamfer | ≤0.2mm×45° |
| Bevel | ≤0.2mm×45° |
| Surface Quality | 80-50 |
| Flatness | ≤3λ |
| Parallelism | ≤3' |
| Color | Transparent Clear |
| Surface Hardness | ≥650HV |
| Material | Quartz |
| Edge | Smooth |
| High Purity Quartz | Yes |
| High Transmittance | Yes |
| Shape and Size Customized | Yes |
Customization:
Customized Quartz Glass Plate
Brand Name: ZCQ
Model Number: ZCQ-P005
Place of Origin: CHINA
Surface Quality: 80-50
Perpendicularity: ≤3′
Edge: Smooth
Chamfer: ≤0.2mm×45°
Flatness: ≤3λ
Our quartz glass plate is made of high quality optical glass with
high transmittance and high-precision. The surface of the plate is
flat and smooth, with excellent perpendicularity, chamfer and
flatness.
Support and Services:
Quartz Glass Plate Technical Support and Service
We provide technical support and service on quartz glass plates to
ensure that our customers can get the most from their investment.
Our experts are available to answer any questions you may have
about quartz glass plates and provide advice on how to best use
them.
We offer a range of services to help you get the most out of your
quartz glass plates, including:
- Troubleshooting and technical support
- Maintenance and repair services
- Custom fabrication services
- Installation and training
Whether you need advice on how to use quartz glass plates or need
help with a specific project, our technical support team is here to
help.
Packing and Shipping:
Packaging and Shipping of Quartz Glass Plate
Quartz glass plates are extremely fragile items and must be
properly packaged and shipped to ensure safe arrival.
Packaging
The plates should be carefully wrapped in multiple layers of
shock-absorbent bubble wrap or a combination of shock-absorbent
foam and bubble wrap. The wrapped plates should then be placed in a
rigid, double-walled cardboard box or a durable wooden crate. For
extra protection, the box or crate should be filled with foam or
bubble wrap to prevent the plates from shifting inside.
Shipping
The package should be shipped via a reliable shipping service such
as UPS, FedEx, or DHL. The package should be clearly labeled with
the delivery address and other relevant information. The package
should also be insured for the full value of the contents.
FAQ:
- Q1: What is Quartz Glass Plate?
- A1: Quartz Glass Plate is a high-temperature resistant product
manufactured by ZCQ. Its model number is ZCQ-P005 and it is made in
China.
- Q2: What are the advantages of Quartz Glass Plate?
- A2: Quartz Glass Plate has excellent chemical stability, heat
resistance, and high temperature resistance. It can withstand
temperatures up to 1200℃.
- Q3: What are the applications of Quartz Glass Plate?
- A3: Quartz Glass Plate has a wide range of applications and is
widely used in chemical, semiconductor, optical, and other
industries.
- Q4: What is the size of Quartz Glass Plate?
- A4: The size of Quartz Glass Plate is customized according to
customer requirements.
- Q5: What are the payment methods for Quartz Glass Plate?
- A5: ZCQ accepts various payment methods, including bank transfer,
PayPal, Western Union, and others.
