Hot sale JGS3 Infrared optical quartz glass plate/ optical window

Technical Data of Quartz Plate/Optical Window

Dimension Tolerance: ±0.1mm-±0.01mm

Flatness: λ-λ/10

Surface Quality: 60/40-10/5

JGS3 is super purity synthetic fused silica manufactured by melting of super pure ash in vacuum. It is transparent in the ultraviolet, visible and infrared spectral regions.

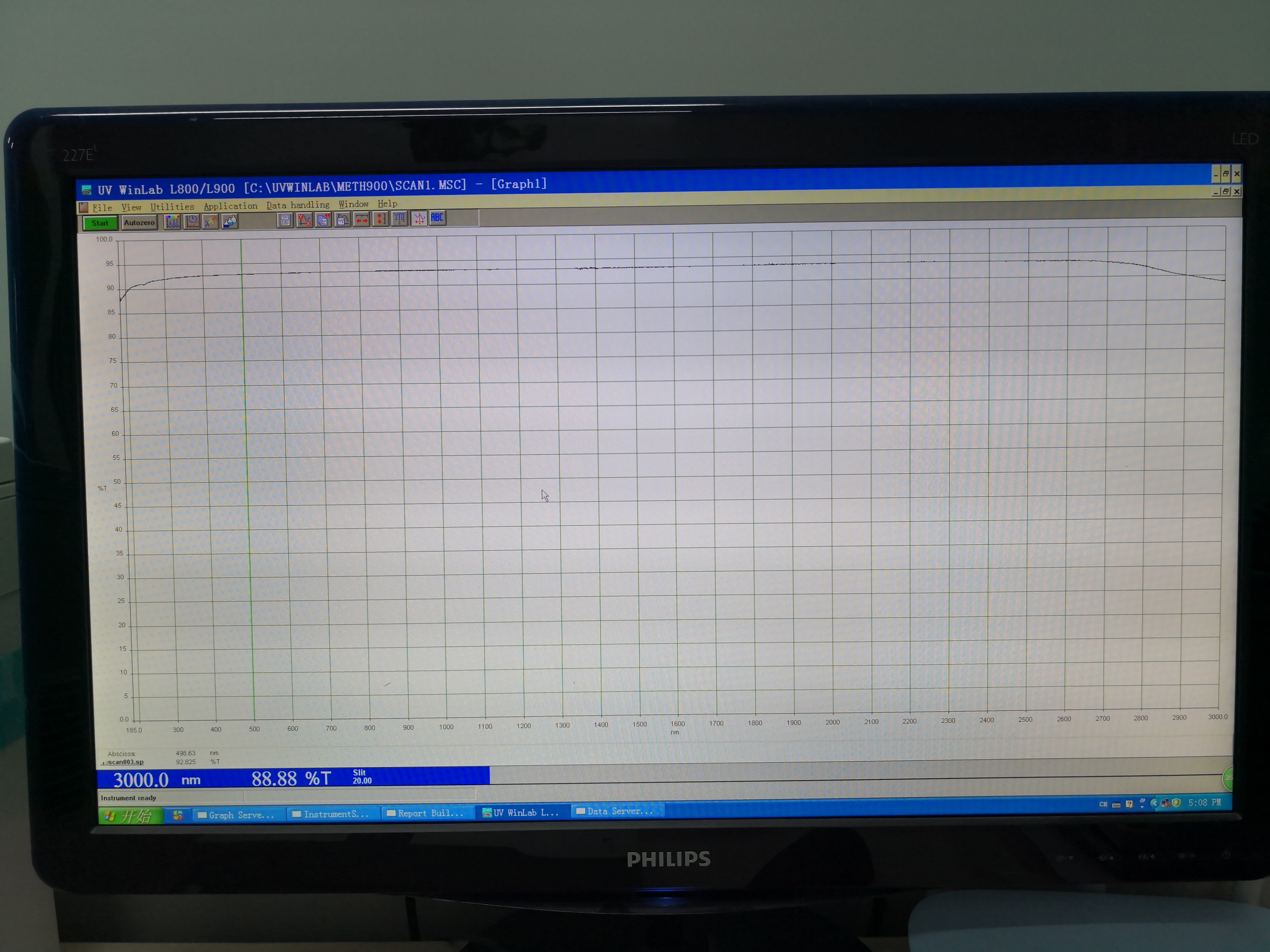

It has no absorption bands in the visible region and has no OH absorption band at 2700 nm.

JGS3 combines excellent physical properties with outstanding optical characteristics in the deep UV and the IR wavelength range.

It is the preferred material for transmission optics;

it is usually used in IR applications and also in those requiring very wide wavelength range from DUV to MIR.

Specifications
For round disc, the OD ranges 1 mm ~ 600mm and the thickness ranges 1~ 300mm
For square disc, the length ranges 1~1200mm, the width ranges 1~900mm and the thickness ranges 1~12mm.
The purity of SiO2 is 99.95%-99.9999%.
The surface is treated to be transparent or non-transparent.

The quartz plate or disc we produced is a high-quality product used in various applications including semiconductor, optics, electronics, medical treatment, bioengineering and laser industries.

We at ZCQ look forward to collaborating with you!

Yantai ZK Optics Co., Ltd., is founded in year 1998, it is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales.

The product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and India. It has established a high-quality product image and brand in the field of glass deep processing.

The company specializes in the custom processing of various optical glasses, including glass capillary tubes / rods, shaped glass tubes / rods, laser cavity filters, optical fiber quartz end caps, quartz parts, quartz plates and quartz instrument etc.

Products are widely used in semiconductor, communications, solar energy, electronics, optics, optical fiber, aerospace, military, chemical industry, coating, medical treatment and many other high-end industries.

The company is located in Beijing, the capital of China, and it has a large production base-Laiyang Zhong Cheng Quartz Glass Co., Ltd. In Laiyang, Shandong province which covers an area of 20,000 square meters. In year 2020, in order to expand the scale of production, the factory was expanded by 8,000 square meters, and it is expected to be put into use in year 2021.

The company takes product quality as its tenet. Each product is strictly controlled from material selection, processing, inspection, packaging, transportation to after-sales service. With technological innovation as the driving force, a large-scale and systematic production model has been formed.

Adhering to the service concept of the quality first and customer-oriented, through unremitting efforts and continuous improvement, ZCQ has created a good manufacturing platform of optical glass for customers.
