    Multi Hole Quartz Glass Tubes For Electronic Cigarette Suction Rod

    Ask Lasest Price
    Brand Name : ZCQ
    Model Number : 10 holes
    Certification : RoHS
    Payment Terms : T/T
    Supply Ability : 1000 pieces per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

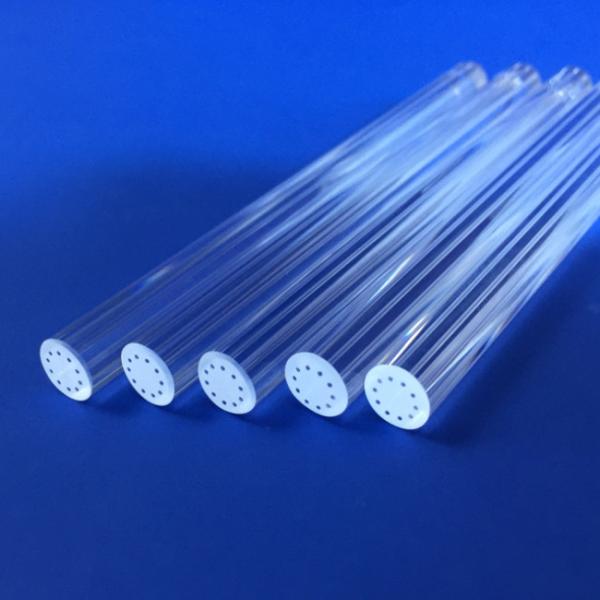

    Multi Hole Quartz Glass Tubes For Electronic Cigarette Suction Rod

    Multi-Hole Glass Tubes Used For Electronic Cigarette Suction Rod


    The multi-hole glass tube is often used as suction rod in electronic cigarette application. The high temperature resistant material, consistent hole size, high precision dimension control, all makes the part have good performance and good suction feeling.


    Product Features:

    High precision dimension

    Easy for liquid or gas flow

    Consistent hole size for good suction feeling

    High end part for electronic cigarette



    As a manufacturer in glass processing field, we are experienced in all kinds of high precision glass part. For glass capillary tubes and rods, please find our production capability below:


    Circular capillary
    ParameterDiameterToleranceUnit
    Length1~2000±0.2mm
    OD0.2~6±0.03
    ID0.06~5±0.03
    MaterialQuartz glass, borosilicate glass, and other materials
    SpecificationOther dimensions and tolerances can be manufactured according to customer requirements

    Square capillary
    ParameterDiameterTolerance单Unit
    Length1~2000±0.2mm
    Width0.3x0.3~6x6±0.03
    ID0.1x0.1~5x5±0.03
    MaterialQuartz glass, borosilicate glass, and other materials
    SpecificationOther dimensions and tolerances can be manufactured according to customer requirements

    Capillary rod
    ParameterDiameterToleranceUnit
    Length1-2000±0.2mm
    Square side length0.2-6±0.03
    Round diameter0.06-5±0.03
    MaterialQuartz glass, borosilicate glass, and other materials
    SpecificationOther dimensions and tolerances can be manufactured according to customer requirements

    Shaped Capillary Tube / Rod
    ShapeConical tube, D-shaped tube, Elliptical tube, Trapezoidal tube, Hexagonal tube, Triangular tube, V-shaped rod, U-shaped rod,
    ApertureMulti-hole (double holes, four holes, six holes, seven holes, eight holes, double row three holes), elliptical, rectangle, square, triangle, eccentric, D-shaped
    MaterialQuartz glass, borosilicate glass, and other materials
    RemarkMinimum tolerance ±0.05mm, other shapes and sizes can be produced according to customer’s requirements

    High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.
